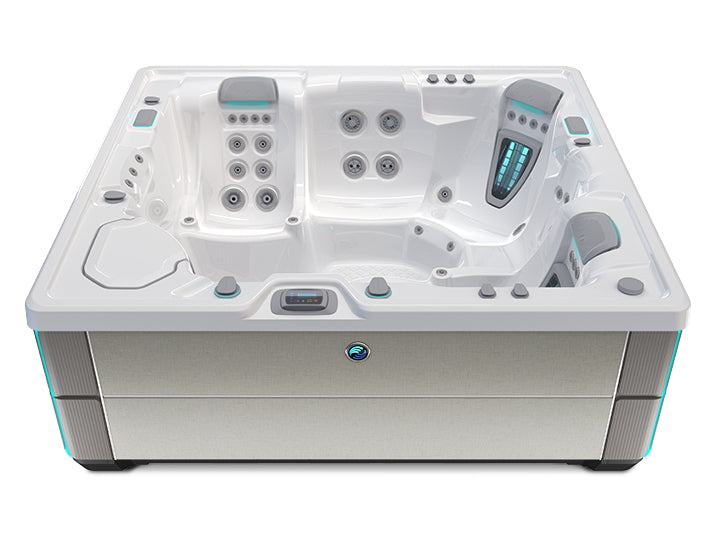

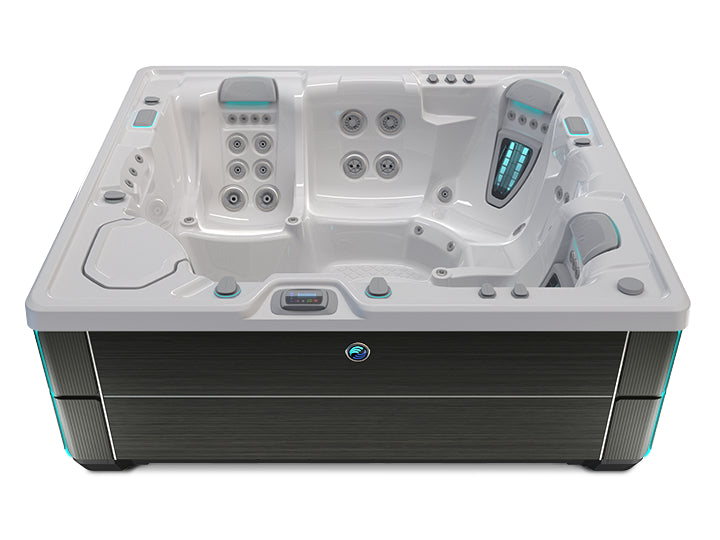

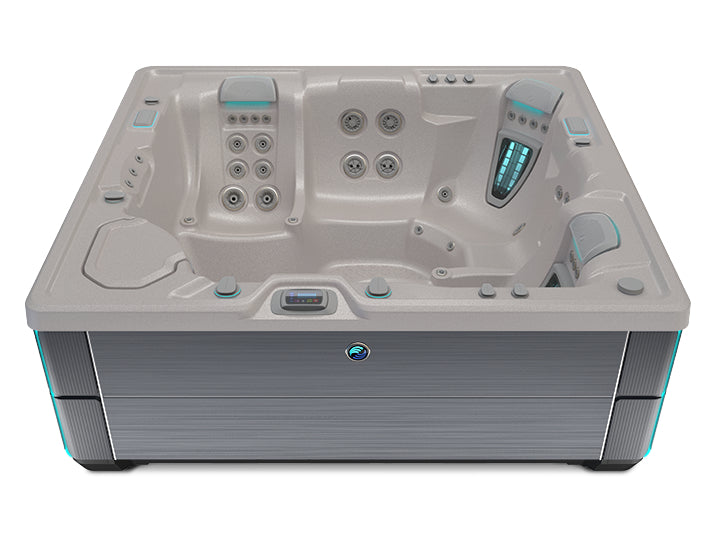

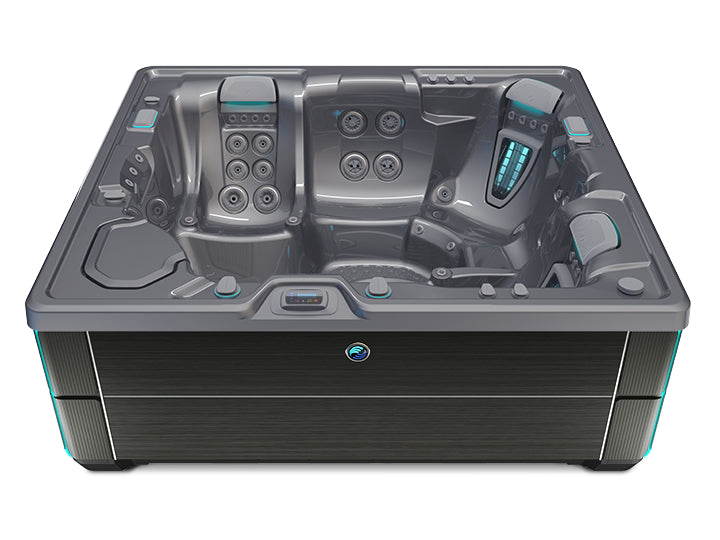

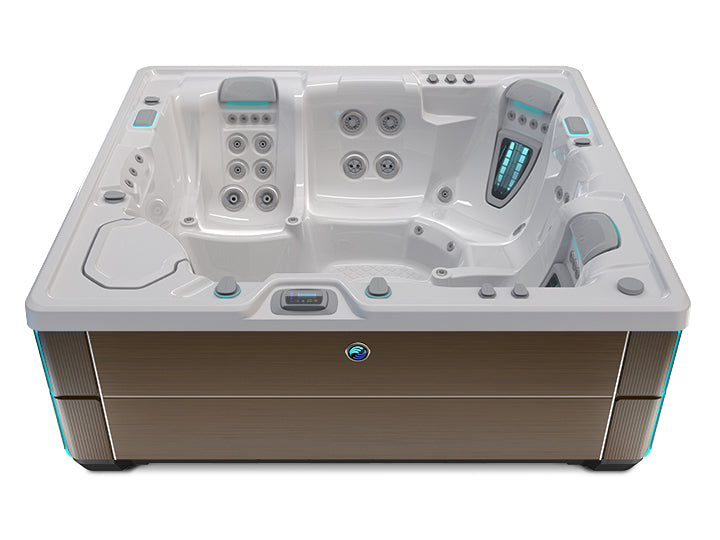

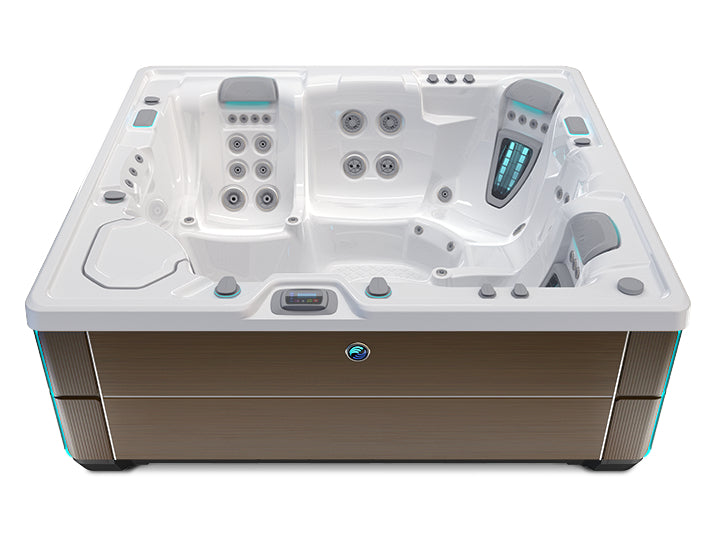

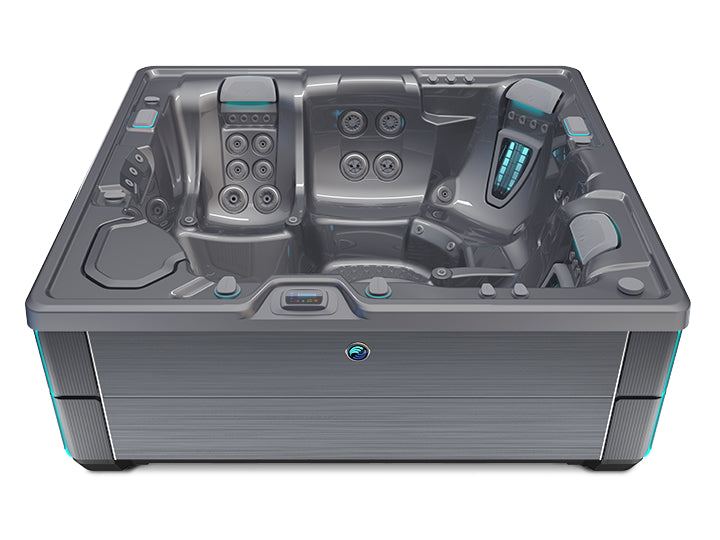

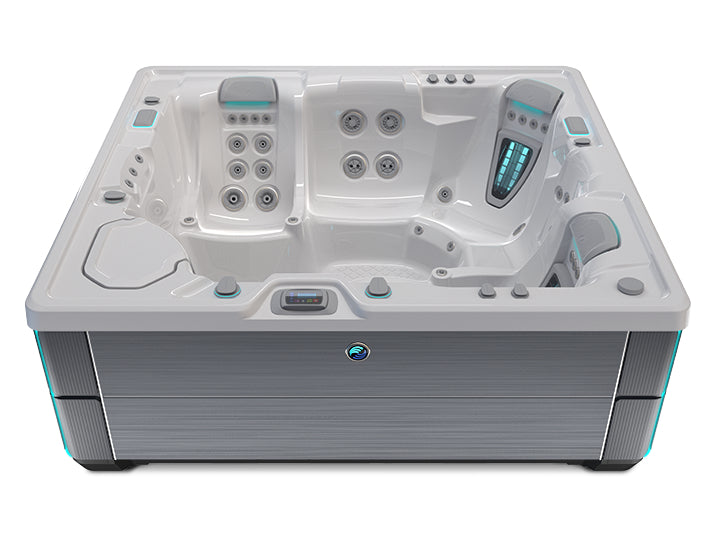

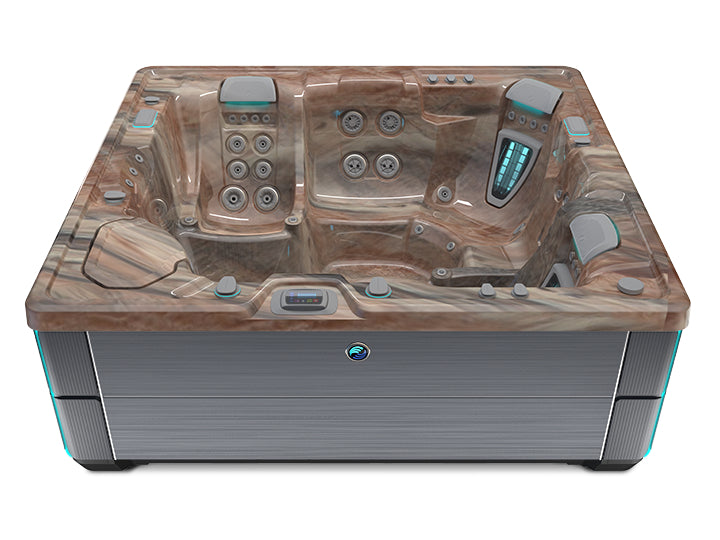

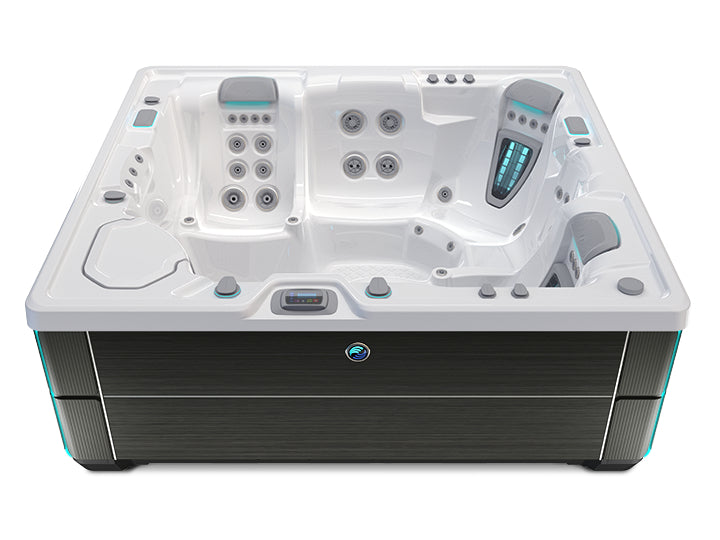

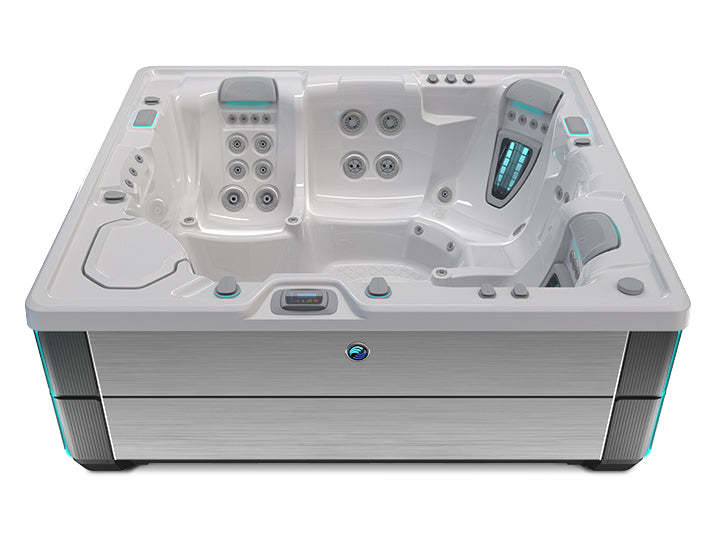

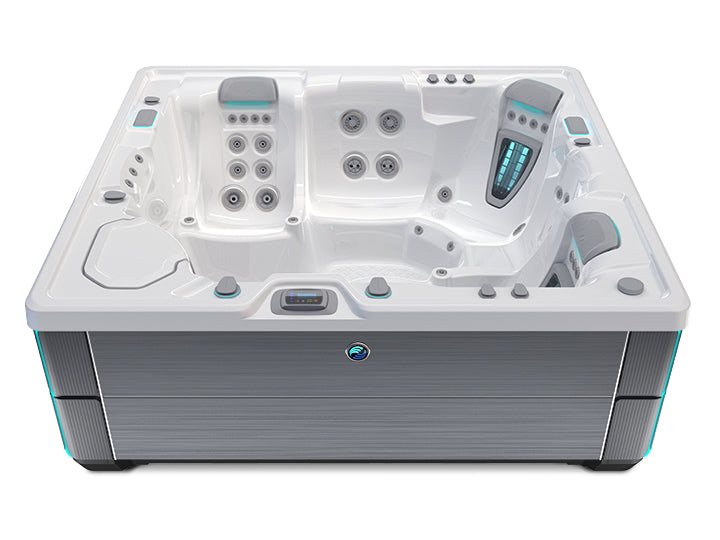

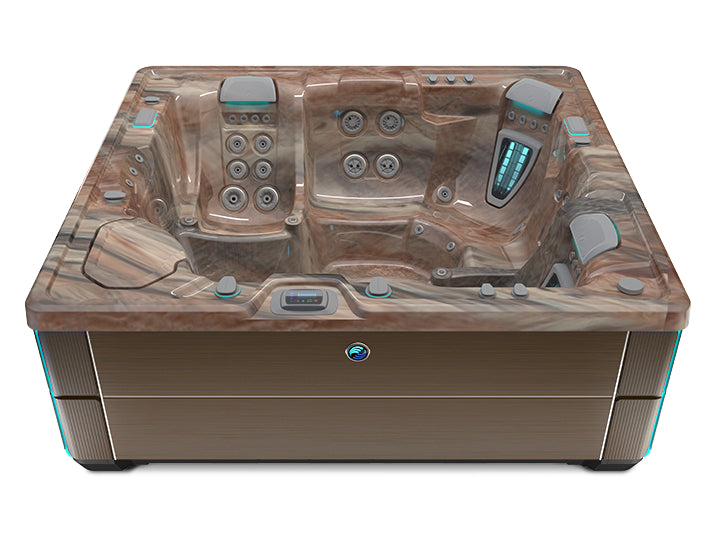

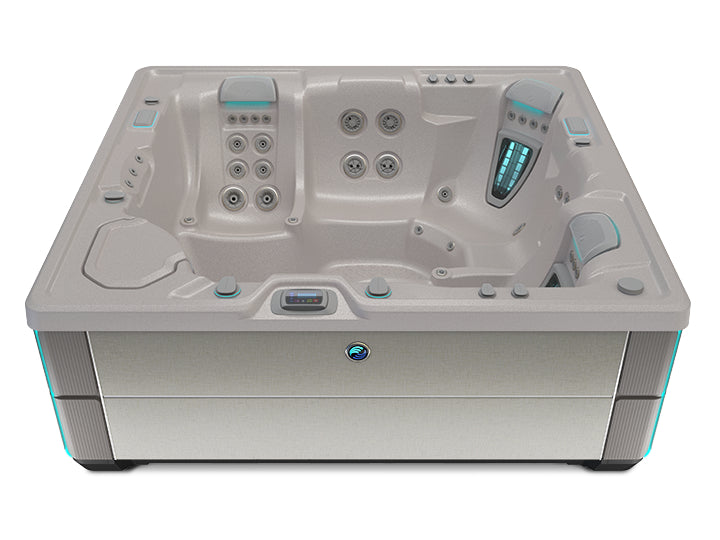

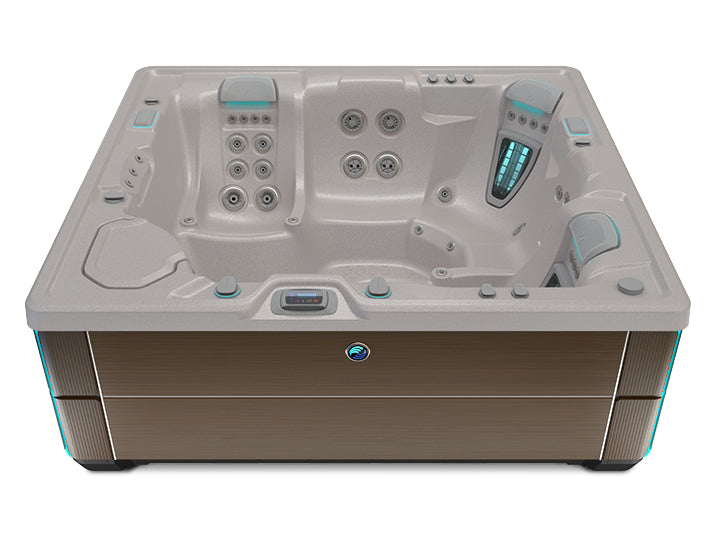

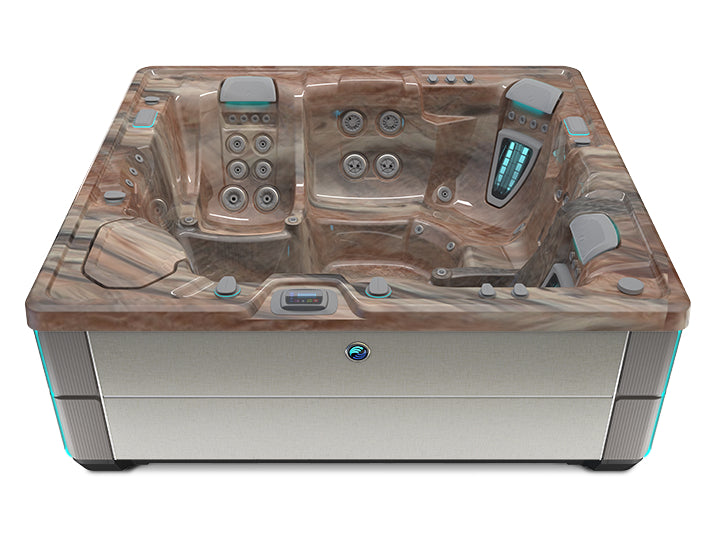

Hot Spring Envoy 5 Person Hot Tub
Hot Spring Envoy 5 Person Hot Tub
Overview
The Envoy is a 5-seat luxury spa with two sweeping back jets, a lounge, and captain's chair. It's complemented by the salt water system and advanced filtration.
Quick Specs
- Total Seats: 5
- Lounge Seat: Yes
- Dimensions: 8’4” x 7’7” x 38” | 254 cm x 231 cm x 97 cm
- Water Care System: FreshWater® IQ Ready Salt System Included | Smart Monitoring + Dosing Optional
- Voltage: 230 V
- Water Capacity: 455 gal. | 1,725 L
- Dry Weight: 785 lbs. | 355 kg.
- Filled Weight*: 5,455 lbs. | 2,480 kg.
Massage
- Jet Count: 55
-
Jet Types
- 2 - Moto-Massage® DX (2)
- 2 - SoothingStream®
- 5 - JetStream®
- 2 - Rotary Hydromassage
- 2 - Directional Hydromassage
- 6 - HydroStream®
- 4 - Rotary Precision®
- 30 - Directional Precision®
- Comfort Control: Yes
- SmartJet System: Yes
- Jet Pump 1: Wavemaster® 9000 One-Speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
- Jet Pump 2: Wavemaster® 9200 Two-Speed 2.5 HP Continuous Duty 5.2 HP Breakdown Torque
Clean Water
- 100% No-Bypass Filtration: Yes
- High-Flow Tri-X® Filters: Yes
- Dual-Action Filtration: No
- Polyester Filters with Free-Flow Core: No
- Effective Filtration Area: 325 sq. ft.
- Water Care System: FreshWater® IQ Ready Salt System Included | Smart Monitoring + Dosing Optional
- Circulation Pump: SilentFlo 5000®
- Floor Drain: Yes
Energy Efficiency
- Insulation: Multiple Layers of Urethane Foam
-
Heater: No-Fault® 4,000 W / 230 V
- Patented Pump Shroud: Yes
- Custom-Fit Insulated Cover: WeatherPro™ 4" Tapered Core with Hinge Seal
- Bottom Seal: Insulated Polymeric Base Pan
- Energy Standards: Meets California Energy Commission (CEC) and APSP 14 Energy Efficiency Standards for Portable Spas
Intuitive Control
- Control System: IQ 2020® with Color LCD Touchscreen 230 V / 50 amp, 60 Hz Includes G.F.C.I. Protected Subpanel
- Diagnostic/Ready Light: Yes
Design
- Cabinet Colors: Java | Charcoal | Blackwood | Linen | Brushed Nickel
- Shell Colors: Alpine White | Ice Gray | Ivory | Platinum | Pebble | Tuscan Sun
- Cover Colors: Black | Gray | Shadow | Storm
- Water Feature: BellaFontana® with Three Illuminated Arcs of Water
- Lighting System - Interior: Customizable LED Zone Lighting
- Lighting System - Exterior: Multi-Color LED Lighting with Timer
- Polymeric Substructure: Yes
Accessories
- Smart Spa Technology: Yes
- Smart Monitoring System: Yes
- Cover Lifters: CoverCradle | CoverCradle II | UpRite | Lift ‘n Glide
- Steps: Highlife® Collection Steps
- Wireless Music System: Yes
- Subwoofer: Yes
- Ozone System: Yes
Brand
Hot Spring®
- Structure: 7 Years
- Shell Surface: 7 Years
- Cabinet: 5 Years
- No-Leak Plumbing: 5 Years
- No-Fault® Heater: 5 Years
- Component Warranty: 5 Years
- Interior Light Assembly: 2 Years
Important
Actual shell and cabinet colors may differ from on-screen representation. Please see your local dealer to verify.
Virtual View™ AR
This free app puts the power of augmented reality at your fingertips. Shop and compare models virtually, in any color combination, and see how they look in your space. Virtual View™ AR takes the guesswork out of choosing your perfect spa.
Distinctive Features
FreshWater® IQ System Ready
This smart, in-line water care system automatically tests your spa water and displays clear instructions to simplify water maintenance.
FreshWater® Salt System Included
A revolution in water care that helps you spend more time enjoying your spa and less time maintaining it.
100% No-Bypass Filtration
All the water is filtered all the time, and exclusive, high-flow Tri-X
Moto-Massage® DX Jet
Patented moving jets provide two powerful water streams that sweep up and down your back for a massage like no other.
Super Energy Efficient
High-density, full-foam insulation and the comprehensive Energy Smart® system makes these our most energy-efficient hot tubs.
Polymer Structure and Base Pan
Built for durability and long life with a structure that will never rust or rot.
Hot Spring Highlife Collection FAQs
What is the Hot Spring Highlife series?
The Hot Spring Highlife series is the brand’s premium hot tub collection, designed for luxury comfort, advanced hydrotherapy, efficient performance, and easier water care. Hot Spring describes the Highlife Collection as its most energy-efficient line and highlights features like Moto-Massage® DX jets, 100% no-bypass filtration, and Energy Smart® insulation.
What makes the Highlife series different from other Hot Spring collections?
The Highlife series typically includes Hot Spring’s highest-end features, including patented Moto-Massage® DX jets, high-density full-foam insulation, advanced filtration, premium styling, and FreshWater® Salt System compatibility. It is positioned as the luxury collection within the Hot Spring lineup.
What is the Moto-Massage® DX jet?
The Moto-Massage® DX jet is a patented moving jet system that sends two streams of water up and down your back for a more dynamic massage experience than standard fixed jets.
Does the Highlife series use saltwater care?
Yes. Highlife models are compatible with the FreshWater® Salt System, which uses a titanium cartridge to generate chlorine from salt and help keep spa water fresh, clear, and natural-feeling. Hot Spring says the cartridge lasts up to four months before replacement.
Are Highlife hot tubs energy efficient?
Yes. The Highlife Collection is designed with high-density full-foam insulation and Hot Spring’s Energy Smart® system, which helps support efficient operation and heat retention.
What is 100% no-bypass filtration?
100% no-bypass filtration means all of the spa water is filtered all the time, rather than allowing some water to bypass the filters. Highlife models use exclusive Tri-X® filters to help keep the water clean and clear.
How many people can fit in a Highlife hot tub?
The Highlife series includes multiple models with different seating capacities, from smaller spas for a few people to larger family-sized models. The right model depends on how many seats, lounge options, and massage zones you want.
Is the Highlife series good for hydrotherapy?
Yes. The Highlife series is built around premium hydrotherapy, with targeted jet systems designed for areas like the back, neck, shoulders, legs, and feet. The Moto-Massage® DX jet is one of the collection’s signature hydrotherapy features.
Is the Highlife series easy to maintain?
Highlife spas are designed to make maintenance easier with FreshWater® Salt System compatibility, 100% no-bypass filtration, and durable Tri-X® filters. Regular testing, balancing, filter cleaning, and cartridge replacement are still required.
Who is the Highlife series best for?
The Hot Spring Highlife series is best for buyers who want a premium hot tub with luxury seating, advanced massage features, strong energy efficiency, and simplified water care. It is a good fit for homeowners who plan to use their spa often and want a higher-end ownership experience.
Hot Tub Safety Tips
For safety, limit hot tub sessions to about 15–30 minutes, keep the water temperature at or below 104°F, and stay hydrated before and after use. Avoid alcohol, and get out right away if you feel dizzy, lightheaded, overheated, or uncomfortable. People who are pregnant, have heart conditions, blood pressure concerns, or other medical conditions should check with a healthcare professional before using a hot tub.
