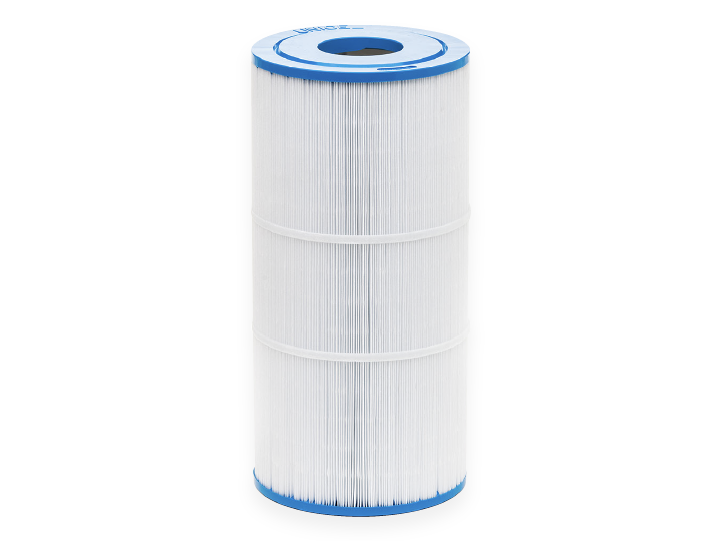

Unicel C-8300 | 100 sq ft Caldera Utopia Spa Filter

• 100 square feet of filtration area: Top-tier capacity that clogs slowly, holds flow steady far longer between cleanings, and substantially reduces strain on the circulation pump.
• 259 pleats: A very high fold count, packing enormous surface area into a cartridge that still fits a standard Utopia filter well.
• Molded gaskets on both ends: Sealing rings formed integrally into each end cap, compressing against the housing to eliminate the bypass path around the media. Nothing separate to fit, lose, or install backwards.
• Replaces two OEM part numbers: Covers both the Caldera 74817 and the Hot Spring 77004, which are the same physical cartridge sold under two Watkins brand names.
• 3 oz Reemay polyester media: One hundred percent polyester with strong chemical resistance, balancing dirt-holding capacity against cleanability so the cartridge recovers well through repeated wash cycles.
• Approximately 20-micron filtration: Captures the fine suspended particles responsible for cloudy, hazy water.
• Solid injection-molded core: Runs the full 16-1/2" length to hold pleat geometry under the sustained suction a 100 sq ft cartridge sees.
• Chemical-resistant end caps: Molded to an exact OEM fit and built to hold gasket geometry through years of chlorine, bromine, and high water temperature.
• Made in the USA: Manufactured by Meissner Manufacturing to meet or exceed OEM specification.

The cartridge seats into the filter housing with a gasketed end at each end pressing against a matching sealing surface. When the circulation pump runs, it draws water from inside the hollow core, dropping the pressure there below that of the surrounding spa water. The difference pushes water inward through the pleated media from every direction at once — across the full 8" circumference and the entire 16-1/2" height. Filtered water collects in the core and exits through the openings into the suction plumbing.

A molded gasket seals differently from the other approaches used on spa cartridges, and the difference is worth understanding. A threaded fitting pulls two parts together mechanically. A slip fitting relies on the tolerance between two smooth surfaces. A molded gasket seals by compression — the cartridge is pressed into place and the rubber deforms slightly, filling every small irregularity in the mating surface. That makes it more forgiving of a slightly rough or aged housing than a hard-surface seal would be, since the rubber can conform to what a rigid plastic face could not.

The trade-off is that rubber changes over time in ways rigid plastic does not. Heat and sanitizer gradually harden it, and a hardened gasket loses the ability to conform. It also takes a compression set — after long service, the rubber can stay slightly flattened where it was squeezed rather than springing back. Neither is a defect; both are simply why the gasket, not the media, is often what determines when this cartridge has reached the end of its useful life.

The 259-pleat count is what makes 100 square feet possible in a housing this size. An 8" cartridge offers roughly 25 inches of circumference, so reaching that surface area requires folding the media densely. Uniformity matters enormously at this density — pleats that lean, bunch, or vary in spacing create low-resistance channels where water rushes through with minimal contact while crowded sections clog early and stop contributing. Debris also loads into the depth of the fibers rather than sitting on the surface, so a cartridge that still looks reasonably clean can already be measurably restricted.

Pro Tip: Never put lubricant, silicone grease, or petroleum jelly on the molded gaskets. It is a common instinct with anything rubber, and it is counterproductive here twice over. Petroleum-based products actively degrade the rubber, softening it and shortening its life. And any lubricant, including silicone, attracts and holds grit — which then sits between the gasket and the sealing surface and holds them apart, defeating the very seal you were trying to improve. These gaskets are designed to seal dry against a clean surface. Wipe both the gasket and the housing sealing face with a clean cloth before seating, and leave it at that.

Installation

1. Turn the spa off at the breaker before opening the filter compartment.
2. Remove the filter lid and lift the old cartridge straight out. Let it drain as you lift — a loaded 100 sq ft cartridge holds a great deal of water and debris, and pulling it fast dumps that load back into the well.
3. Inspect both sealing surfaces in the housing. Wipe them clean and check that they are smooth and free of scale, grit, and nicks. A gasket can only seal against what it is pressed into.
4. Wipe the molded gaskets on the new cartridge with a clean cloth. Install them dry — no lubricant of any kind.
5. Lower the cartridge in and press evenly until both gaskets are seated. You should feel slight resistance as the rubber compresses.
6. Confirm the cartridge sits square and does not rock or lean. Uneven seating means one gasket is compressed and the other is not, which leaves a bypass path.
7. Replace the lid, restore power at the breaker, and run a full circulation cycle.
8. Verify normal jet pressure and flow. A clear improvement over the old cartridge is expected.

Routine Cleaning

• Every 2 to 4 weeks: Remove and rinse with a garden hose using a fan or fingertip nozzle. At 259 pleats the gaps are tight, so angle the spray down into each fold and rotate steadily through the full circumference. A cartridge this large and this densely pleated takes real time to rinse properly — do not shortcut it.
• Wipe the gaskets at every cleaning. Clean off any film or grit and check that the rubber still feels supple rather than hard or chalky.
• Every 3 months: Deep-soak in a dedicated spa filter cleaning solution to dissolve body oils, lotion residue, and mineral scale that rinsing cannot remove. Rinse thoroughly afterward — cleaner residue left in dense pleats is a common and entirely preventable cause of persistent foaming.
• At every drain and refill: Deep-clean the cartridge and wipe out the housing sealing surfaces before either goes back into service.
• Rotate two cartridges if you can: A spare lets you install the clean one immediately while the other dries completely. A fully dried cartridge releases trapped debris far more easily on the next rinse — an advantage that compounds at this pleat density — and rotating roughly doubles the useful life of both.

Important Cautions

• Do not use a pressure washer. High-pressure spray tears media fibers and destroys pleat geometry, often without visible damage, and it can cut or tear the molded gaskets.
• Do not lubricate the gaskets with silicone, petroleum jelly, or any other product. They seal dry.
• Do not clean with dish soap, laundry detergent, or household cleaners. These leave residues that foam persistently and can degrade rubber over time.
• Do not force a cartridge that does not seat easily. Some resistance from gasket compression is normal; hard resistance is not, and forcing it deforms the end caps and damages the gaskets.
• Do not run the spa without a cartridge installed, even briefly. Debris drawn directly into the pump can cause damage costing far more than a filter.
• Do not boil, bleach, or machine-wash the cartridge.

When to Replace

Replace the cartridge when you see torn or separated media, cracked or deformed end caps, a soft or collapsing core, pleats that have permanently lost their shape or matted together, staining that no longer responds to a deep soak, or a persistent drop in flow that thorough cleaning no longer restores. On this cartridge, watch the gaskets closely — rubber that has gone hard, chalky, cracked, or permanently flattened can no longer conform to the housing surface, and a cartridge that cannot seal is not really filtering regardless of how good the media looks. Gasket condition is frequently what ends this cartridge's service life, not the pleats. Most spa owners under typical use replace every 12 to 18 months.

• Brand: Unicel
• Manufacturer: Meissner Manufacturing Co., Inc.
• Part Number: C-8300
• Product Type: Replacement spa filter cartridge, drop-in with molded gaskets
• Filtration Area: 100 sq. ft.
• Pleat Count: 259
• Filter Media: 3 oz. Reemay polyester
• Micron Rating: Approximately 20 microns
• Outer Diameter: 8"
• Length: 16-1/2"
• Top End Cap: Open, 3-1/8" inner diameter, with molded gasket
• Bottom End Cap: Open, 3-1/8" inner diameter, with molded gasket
• Handle: None
• Core: Solid injection-molded, full-length
• End Cap Material: Chemical-resistant molded plastic, exact OEM fit
• Replaces OEM: Caldera Spas 74817, Hot Spring 77004
• Cross-References: Pleatco PWK100, Filbur FC-3966, 17-175-2505
• Fits: Caldera Utopia Cantabria 2009–2014
• Typical Service Life: 12 to 18 months with routine cleaning
• Cleaning Method: Hose rinse every 2 to 4 weeks using a fan nozzle; chemical soak every 3 months. Do not pressure wash.
• Installation: Drop-in. Seat gaskets dry — do not lubricate.
• Not Compatible With: Utopia Cantabria models from the 2014 third-quarter changeover onward, which use a 3-5/8" lip-seal cartridge with a semi-circular handle
• Origin: Made in the USA
• Shipping: Standard ground; not classified as a hazardous material

Replaces These OEM Part Numbers

• Caldera Spas 74817
• Hot Spring 77004

These two numbers describe the same physical cartridge, sold under two different Watkins Wellness brand names. If your old filter carries either one, this is your replacement.

Cross-Reference Part Numbers

• Pleatco PWK100
• Filbur FC-3966
• 17-175-2505

Spa Models Using This Cartridge

• Utopia Cantabria 2009–Q2 2014

Fitment Note: For 2014 Cantabria spas, confirm the production quarter. Q3–Q4 production uses 73722.

Not to Be Confused With the Later 100 sq ft Cartridge

Caldera changed the Utopia Cantabria filter partway through 2014, and the replacement cartridge shares this one's capacity, pleat count, diameter, and length exactly. Model year alone will not tell you which you need, because 2014 spans both. The end caps are the only reliable tell:

• This cartridge (2009–2014): 3-1/8" openings, molded gasket at each end, no handle.
• The later cartridge (2014 third quarter onward): larger 3-5/8" openings, a lip seal rather than a molded gasket, and a semi-circular handle across the top.

How to Confirm Fitment

Verify all four against your existing cartridge before ordering:

• End openings: 3-1/8" inner diameter, both ends, measured across the inside of the opening.
• Sealing style: A molded gasket formed into each end cap face — a rubber ring that is part of the cap, not a separate item.
• Top style: Open, with no handle. A handle means you have the later cartridge.
• Outer diameter and length: 8" and 16-1/2".

Pro Tip: If you are shopping without your old cartridge in front of you, the fastest way to settle it is to look at your spa's build date rather than its model year, then verify the opening once the new filter arrives and before you throw the old one away. Keep the old cartridge until the new one is seated and the spa has run a full cycle. On a gasketed cartridge this matters more than usual, because a mismatched opening will often still drop into the housing — it simply will not seal, and the symptom is water that never quite clears rather than an obvious mechanical failure. Our team can also confirm the correct cartridge from your spa's serial number, which resolves the 2014 split definitively.
